忠实呈现各种线条,不论是细的线条或是粗的线条,都有最佳的呈现。 |
|
改良显影制程的稳定性,同时增加药水抗氧化性。 |
|
减少在显影制程阶段所产生的缺点。 |
|
降低显影药水的消耗,提高环境保护要求。 |
|

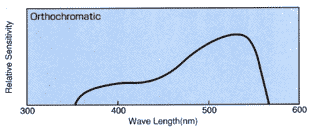

光谱感度 (Spectra sensitivity): |
|
|
|

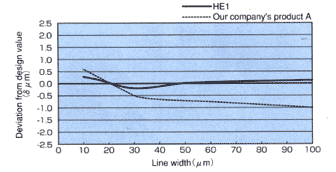

线条宽度比较 (Line width balance): 线条尺寸完美地被复制 |
|
|
|

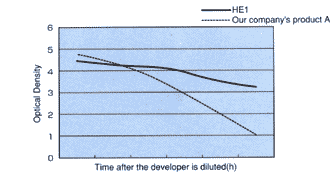

时间变化反应显影药水的稳定性与消耗 (Developer stability over time): |
|
|
|
制程条件 (Processing conditions): |
制程步骤
(Processing) |
搭配药水
(Chemical used) |
制程温度
(Temp.) |
制程时间
(Time) |
显影
(Development) |
显影液 (Developer)
DE-200
|
20℃ |
显影时间3分钟配合不断摇晃槽体
(3 minutes with continuous agitation) |
中止反应
(Stop bath) |
醋酸 (Acetic acid)
(3%) |
18~21℃ |
10~30秒
(10 to 30 seconds)
|
定影
(Fix) |
定影液 (Fixer).
CFL-881
|
18~21℃ |
显影时间3分钟配合不断摇晃槽体
(3 minutes with continuous agitation) |
水洗
(Wash) |
流动水
(Flowing water) |
18~21℃ |
10分鐘以上
(10 minutes
or more) |
风干
(Drying) |
20 to 50℃ 干燥空气
(Clean air 20 to 50℃) |
|
Designated safe light : Please ask for details |
